Hybrid layer-by-layer composites based on a conducting polyelectrolyte and Fe3O4 nanostructures grafted onto graphene for supercapacitor application†
Elodie Pardieu,Sergey Pronkin,Thierry Dintzer,Dominique Begin,Cuong Pham-Huu
Journal of Materials Chemistry A Pub Date : 09/30/2015 00:00:00 , DOI:10.1039/C5TA05132K
Abstract

Using the layer-by-layer process, we developed a new and original ternary hybrid material based on magnetite iron oxide raspberry nanostructures, 250–300 nm in size, synthesized directly on few layer graphene (Fe3O4@FLG) alternated with conducting poly(3,4-ethylenedioxy thiophene):poly(styrene sulfonate) (PEDOT:PSS) as the electrode material for supercapacitors. Magnetite based nanostructures were used as electroactive materials. Graphene and PEDOT:PSS ensured the electrical conductivity. PEDOT:PSS also plays the role of a binder conferring cohesion to the hybrid material. Using spin-coating, the step-by-step buildup leads to very regular and well controlled film properties such as the film thickness and the content of iron oxide. The electrochemical properties of the so-obtained hybrid material were investigated in 0.5 M Na2SO3 aqueous electrolyte by cyclic voltammetry, electrochemical impedance spectroscopy and chronopotentiometry. In contradiction with the reported poor capacitance and poor cycling stability of iron oxide based supercapacitors, hybrid Fe3O4@FLG/PEDOT:PSS multilayers provide a high specific capacitance (153 F g−1 at 0.1 A g−1) and a high structural and cycling stability (114% retention after 3500 cycles). This hybrid developed system opens the route for even higher specific capacitance using other types of metal oxides.

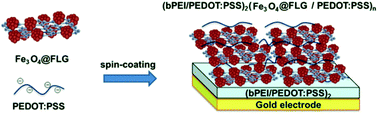

Graphical abstract: Hybrid layer-by-layer composites based on a conducting polyelectrolyte and Fe3O4 nanostructures grafted onto graphene for supercapacitor application
