A novel triphenylacrylonitrile based AIEgen for high contrast mechanchromism and bicolor electroluminescence†
Jiayou Hu,Bingli Jiang,Yongyang Gong,Yuanli Liu,Gang He,Wang Zhang Yuan,Chun Wei
RSC Advances Pub Date : 01/02/2018 00:00:00 , DOI:10.1039/C7RA10174K
Abstract

A novel thermally stable and aggregation-induced emission (AIE) active compound, 2,2'-(([1,1′-biphenyl]-4,4′-diylbis(phenylazanediyl))bis(4,1-phenylene))bis(3,3-diphenylacrylonitrile) (BP2TPAN) was synthesized through a C–N coupling reaction between 2-(4-bromophenyl)-3,3-diphenylacrylonitrile (Br-TPAN) and N,N′-diphenyl-1,4-phenylenediamine, under mild conditions using Pd(OAc)2 and P(t-Bu)3 as a catalyst. The BP2TPAN was characterized by nuclear magnetic resonance spectroscopy, high resolution mass spectrometry and elemental analysis. The thermal analysis showed that the glass transition and decomposition temperatures (5% weight loss) are 96 and 414 °C, respectively. The fluorescent emission peaks changes at 540 and 580 nm upon grinding were attributed to a transformation from crystal to amorphous occurring by altering the condensed state. The photoluminescence quantum yield and fluorescence lifetime of the as prepared and ground samples were 74.3 and 8.4%, 3.4 and 5.1 ns, respectively. The difference of the luminous efficiency of before and after grinding samples indicates BP2TPAN has a high contrast more importantly, both doped and nondoped OLED devices emit different color, the doped one is highly efficient and its Lmax, CEmax, PEmax and EQE are up to 15 070 cd m−2, 11.0 cd A−1, 7.5 lm W−1, and 3.1%, respectively.

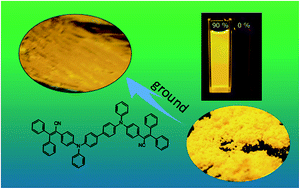

Graphical abstract: A novel triphenylacrylonitrile based AIEgen for high contrast mechanchromism and bicolor electroluminescence
