Synthesis and photovoltaic properties of D–A copolymers of benzodithiophene and naphtho[2,3-c]thiophene-4,9-dione
Chaohua Cui,Haijun Fan,Xia Guo,Maojie Zhang,Youjun He,Xiaowei Zhan,Yongfang Li
Polymer Chemistry Pub Date : 10/19/2011 00:00:00 , DOI:10.1039/C1PY00376C
Abstract

Two donor–acceptor (D–A) alternative copolymers of benzodithiophene (BDT) donor unit and an acceptor unit of naphtho[2,3-c]thiophene-4,9-dione (NTDO) with different alkyl side chains, PBDTNTDO-1 and PBDTNTDO-2, were synthesized for application as donor materials in polymer solar cells (PSCs). The copolymers show good solubility in common organic solvents, broad visible absorption from 350 nm to 670 nm, and relatively lower HOMO energy levels at −5.14 eV for PBDTNTDO-1 and −5.19 eV for PBDTNTDO-2. The PSCs based on PBDTNTDO-2 as donor and PC70BM as acceptor demonstrated power conversion efficiency of 1.52% with an open circuit voltage of 0.88 V and a short circuit current of 5.67 mA cm−2, under the illumination of AM1.5, 100 mW cm−2.

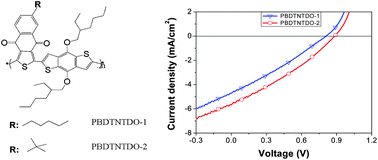

Graphical abstract: Synthesis and photovoltaic properties of D–A copolymers of benzodithiophene and naphtho[2,3-c]thiophene-4,9-dione
