Two-step ball-milling synthesis of a Si/SiOx/C composite electrode for lithium ion batteries with excellent long-term cycling stability†
Lingzhi Qian,Mengyao Xue,Yunhua Yu,Xiaoping Yang
RSC Advances Pub Date : 07/25/2017 00:00:00 , DOI:10.1039/C7RA06671F
Abstract

SiOx-based anodes have attracted tremendous attention owing to their low cost, higher theoretical capacity than graphite and lower volume expansion than pure silicon. In this work, a simple and cost-effective two-step ball-milling method was proposed to fabricate Si/SiOx/C composites by using commercial SiO and graphite carbon as raw materials. The two-step ball-milling synthesis of the Si/SiOx/C composites can avoid the generation of an inert SiC phase and realize the uniform dispersion of Si/SiOx in graphite carbon, which offers good electrical conductivity and relieves the volume expansion of the Si/SiOx phase. Owing to the synergistic effect of the Si/SiOx phase and the graphite carbon, the typical Si/SiOx/C electrode exhibits a stable and high capacity of 726 mA h g−1 after 500 cycles at a current density of 0.1 A g−1 with a capacity retention of 82%. The two-step ball-milling preparation of the Si/SiOx/C composite provides a facile approach to fabricate high-performance SiOx-based anode materials.

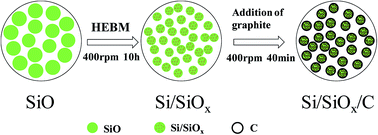

Graphical abstract: Two-step ball-milling synthesis of a Si/SiOx/C composite electrode for lithium ion batteries with excellent long-term cycling stability
