Rational selection of solvents and fine tuning of morphologies toward highly efficient polymer solar cells fabricated using green solvents†
Delong Liu,Zaiyu Wang,Shaoqing Zhang,Zhong Zheng,Bei Yang,Wei Ma,Jianhui Hou
RSC Advances Pub Date : 08/10/2015 00:00:00 , DOI:10.1039/C5RA14013G
Abstract

High-efficiency polymer solar cells (PSCs) based on a conjugated polymer named PBQ-4 were fabricated by employing 1,2-dichlorobenzene (o-DCB), o-xylene and anisole as primary solvents. We rationally selected three solvent additives, 1,8-diiodooctane (DIO), N-methylpyrrolidone (NMP) and diphenyl ether (DPE) to tune the morphologies of the blend films. The power conversion efficiency (PCE) of 8.47% and 7.62% were realized by using o-DCB/DIO and o-xylene/NMP as processing solvent, respectively. The PSC with a PCE of 8.37% was fabricated using the environmentally friendly solvents of anisole/DPE. To the best of our knowledge, the PCE of 8.37% is not only among the highest values reported for PSCs with Eg > 1.7 eV but also the highest value for a PSC processed using a biodegradable solvents with low toxicity. Therefore, these results open the new paths for the fabrication of highly efficient PSCs by green processes.

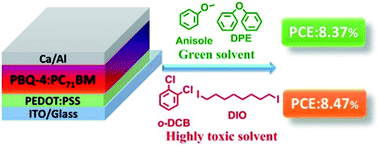

Graphical abstract: Rational selection of solvents and fine tuning of morphologies toward highly efficient polymer solar cells fabricated using green solvents
