[Ir(ppy)2pyim]PF6 dielectric mixed with PMMA for area emission transistors†
Jing Li,Wenhai Li,Dongxin Ma,Weiqi Zhang,Lei He,Lian Duan,Liduo Wang,Guifang Dong
RSC Advances Pub Date : 09/27/2016 00:00:00 , DOI:10.1039/C6RA22052E
Abstract

We demonstrated an area emission transistor with [Ir(ppy)2pyim]PF6/PMMA as the dielectric layer. The brightness can be tuned by VDS and VGS, respectively. The device performance was optimized by adjusting the mass concentration ratios of PMMA. Different working mechanisms of the devices with and without PMMA were investigated through the Kelvin probe force microscope. The doping of PMMA will change the surface potential of [Ir(ppy)2pyim]PF6, and then change the properties of charge injection. Our research may open up a new way for the development of multifunctional devices.

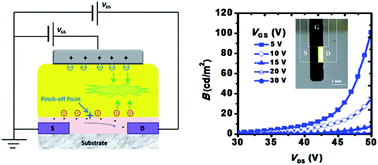

Graphical abstract: [Ir(ppy)2pyim]PF6 dielectric mixed with PMMA for area emission transistors
