CNT–G–TiO2 layer as a bridge linking TiO2 nanotube arrays and substrates for efficient dye-sensitized solar cells
Y. L. Zhao,D. S. Yao,C. B. Song,L. Zhu,J. Song,X. Q. Gu,Y. H. Qiang
RSC Advances Pub Date : 04/30/2015 00:00:00 , DOI:10.1039/C5RA01085C
Abstract

This study incorporated a 3-D hybrid material comprising graphene and carbon nanotubes (CNTs) into a TiO2 composite paste to adhere TiO2 nanotube arrays (NTAs) as photoanodes. The effect of the proportion of CNTs to graphene on the dye-adsorption ability of bonding layers was investigated and the optimal proportion of 2 : 1 provided a greatest degree of dye absorption. The DSSC efficiencies firstly increased and then decreased with increasing amount of CNT–G hybrid. The optimized DSSC efficiency of 6.17% was achieved at a suitable concentration (0.1 wt%) of CNT–G, which is due to a balance between electron transport and light harvesting in the photoanode.

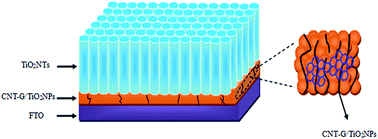

Graphical abstract: CNT–G–TiO2 layer as a bridge linking TiO2 nanotube arrays and substrates for efficient dye-sensitized solar cells
