Enhancing energy storage performance in Na0.5Bi0.5TiO3-based lead-free relaxor ferroelectric ceramics along a stepwise optimization route†
Wen Wang,Leiyang Zhang,Yule Yang,Wenjing Shi,Yunyao Huang,D. O. Alikin,V. Ya. Shur,Zhihao Lou,Amei Zhang,Xiaoyong Wei,Dong Wang,Feng Gao,Hongliang Du,Li Jin
Journal of Materials Chemistry A Pub Date : 01/05/2023 00:00:00 , DOI:10.1039/D2TA09395B
Abstract

Despite the fact that relaxor ferroelectrics (RFEs) have been extensively researched because of their various advantages, there are still barriers to simultaneously increasing their energy storage density (Wrec) and efficiency (η). By substituting Bi(Mg0.5Sn0.5)O3 (BMS) and optimizing the formation process, this study follows a stepwise optimization route to achieve comprehensive exceptional energy storage performance (ESP) in Na0.5Bi0.5TiO3-Sr0.85Bi0.1TiO3 (NBT-SBT)-based ceramics. On the premise of constructing a Sr2+–Sr2+ ion pair at the A-site to ensure a large polarization, the introduction of Mg2+ and Sn4+ ions at the B-site further induces a local disordered field and promotes polar nanoregions. Following that, the viscous polymer process (VPP) used to synthesize NBT-SBT-BMS ceramics can thin the thickness, reduce defects, and boost compactness, hence improving the polarization difference (ΔP) and breakdown strength (Eb). Using the stepwise optimization route, we were able to attain a high ΔP of 64.6 μC cm−2 and an Eb of 440 kV cm−1 in 0.92(0.65NBT-0.35SBT)-0.08BMS-VPP ceramics. More crucially, an ultrahigh Wrec of 7.5 J cm−3 and a high η of 85% are simultaneously achieved, together with excellent temperature adaptability between 20 and 120 °C. Our superb ESP exceeds the majority of previously reported NBT-based ceramics, confirming the applicability of this stepwise optimization route to other similar high-performance dielectric ceramic designs.

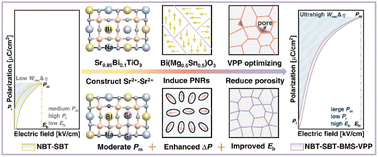

Graphical abstract: Enhancing energy storage performance in Na0.5Bi0.5TiO3-based lead-free relaxor ferroelectric ceramics along a stepwise optimization route
